1. Basic Parameters
The 6205 is a classic and widely used single-row deep groove ball bearing with international standard dimensions. It features high dimensional universality and strong compatibility, suitable for most light and medium-duty rotating equipment. All specifications comply with ISO industrial standards, ensuring perfect interchangeability and stable operating performance for global equipment matching and replacement.
-

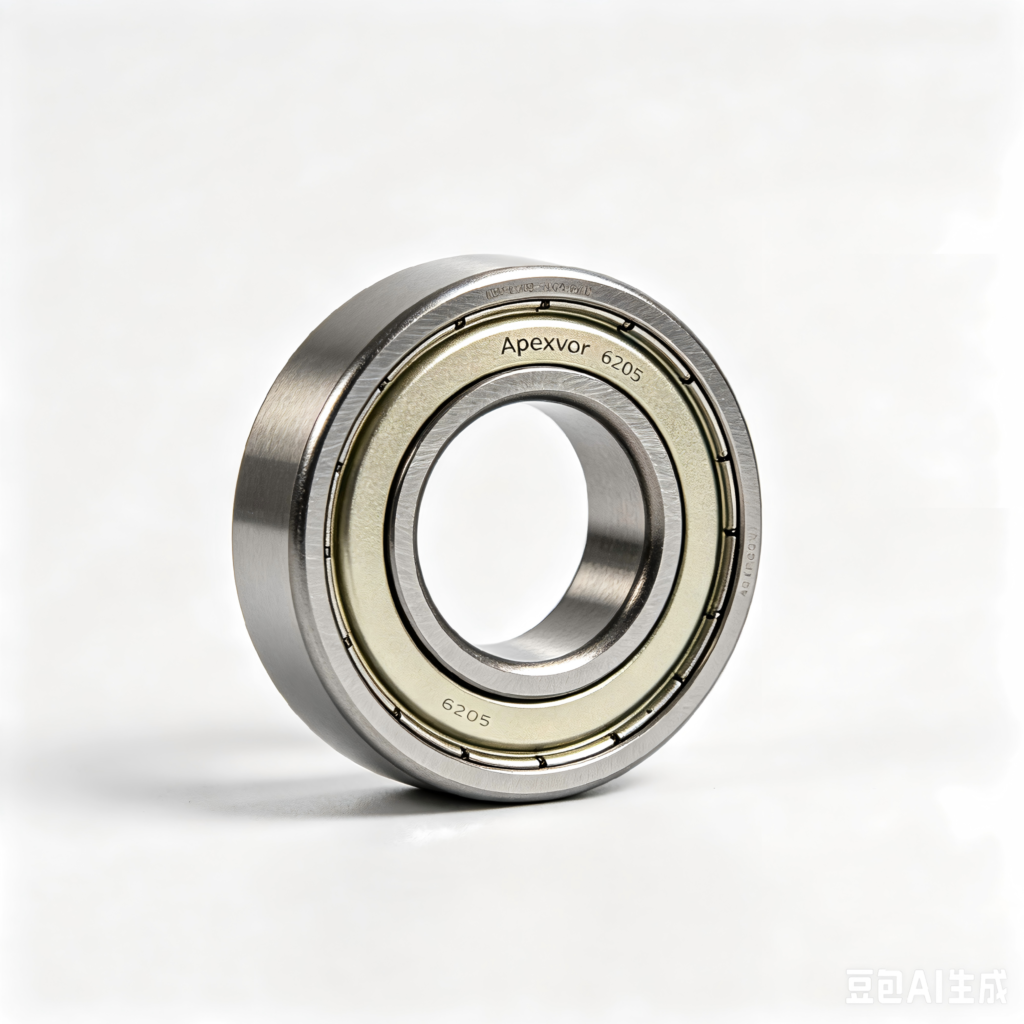

Model Number: 6205
-
Inner Bore: 25 mm
-
Outer Diameter: 52 mm
-
Bearing Type: Single Row Deep Groove Ball Bearing
-
Seal Type: Open / ZZ Metal Shield / 2RS Rubber Seal (Optional)
-
Precision Grade: P0 Standard / P6 High Precision (Optional)
-
Dynamic Load Rating: 14.0 kN
-
Static Load Rating: 7.88 kN
2. Core Advantages
The 6205 deep groove ball bearing is renowned for its low friction, high speed resistance and ultra-stable operation performance. Compared with ordinary bearings, it supports both radial load and bidirectional light axial load, adapting to complex rotating working conditions. With ultra-precision raceway grinding and standardized assembly technology, this bearing runs smoothly with low noise and low heat generation during long-term high-speed operation. It boasts high cost performance, strong universality and low maintenance cost, becoming the preferred standard bearing for civilian, industrial and mechanical supporting fields. Multiple seal options enable it to adapt to clean, dusty and humid working environments respectively, meeting diverse customer application demands.
3. Application Industries
6205 deep groove ball bearings are versatile general-purpose bearings, widely used in high-speed, low-noise and medium-light load mechanical scenarios across multiple industries.
-
Electrical Equipment: Electric motors, generators, fans, water pumps, ventilators
-
Automotive Accessories: Automotive auxiliary motors, small transmission parts, vehicle electrical systems
-
General Industrial Machinery: Conveyor equipment, packaging machinery, textile machinery, printing machinery
-
Home & Commercial Appliances: Household motors, fitness equipment, office equipment
-
Agricultural Machinery: Small agricultural processing equipment, agricultural auxiliary transmission parts
4. Material & Processing Technology
All Apexvor 6205 bearings are made of high-purityGCr15 high-carbon chromium bearing steel, which undergoes strict smelting and impurity removal treatment, featuring high hardness, uniform texture, excellent wear resistance and fatigue resistance. The whole production process adopts precision forging forming, integral vacuum quenching and high-temperature tempering treatment to ensure stable overall hardness and structural toughness. The inner and outer ring raceways and steel balls are processed by multi-stage ultra-precision grinding and super finishing technology, with ultra-smooth surface and minimal friction coefficient. Each finished bearing passes strict dimensional tolerance detection, hardness testing, rotational precision inspection and noise testing to eliminate defective products and ensure consistent high quality.
5. Product Features
-
Dual Load Bearing Capacity: Effectively bears radial load and bidirectional light axial load, adaptable to complex stress conditions
-
High-Speed & Low Noise: Optimized raceway and steel ball matching design, smooth rotation, low noise and low heat generation
-
Multiple Protection Options: Open type for high-speed heat dissipation, ZZ dust-proof type for dry environments, 2RS waterproof and dust-proof type for harsh environments
-
Excellent Durability: High-hardness steel body resists wear and fatigue, extending long-term service life
-
Easy Installation & Maintenance: Integrated overall structure, simple assembly, no complicated maintenance required
-
Wide Universality: Standard international size, fully compatible with mainstream equipment, convenient for replacement and bulk matching
6. Supply & Service Support
Apexvor maintains sufficient spot inventory and stable batch supply for 6205 deep groove ball bearings, supporting global wholesale, bulk ordering and retail procurement. We provide customized services including custom bearing precision, laser logo marking and personalized packaging. All products are certified with ISO9001 and CE, with reliable quality and a 12-month after-sales warranty. Our professional technical team provides free parameter matching and application consultation services. With competitive factory direct prices, fast global delivery and perfect after-sales system, we provide one-stop professional bearing solutions for global customers.
